If you are looking for a shallow-mount speaker system with amazing performance, drop by California Car Sounds and Tint near San Jose and check out the Morel Nano 602. This 6½-inch component speaker set features a woofer that requires only 0.67 inches of mounting depth, making it an ideal solution for door and kick-panel installation locations. Let’s look at the Morel Virtus Nano 602 set in detail.

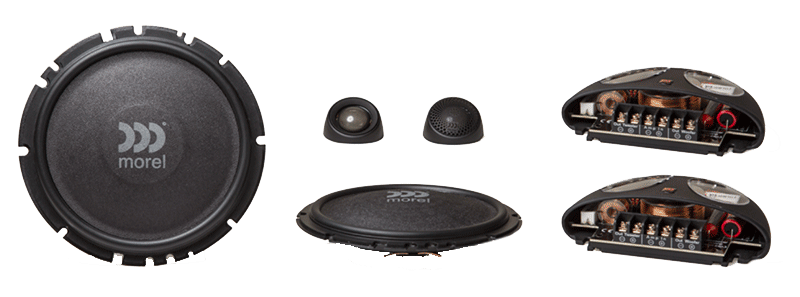

Morel Nano 602 Features

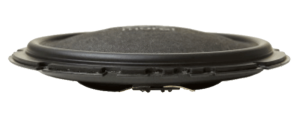

The MW6 woofers use a carbon-impregnated paper cone for excellent rigidity and damping characteristics. A large 2.16-inch aluminum voice coil former is home to Morel’s proprietary Hexatech aluminum voice coil winding. A compact but efficient neodymium magnet inside the voice coil provides a strong magnetic field for excellent efficiency. The woofers have a nominal impedance of four ohms and are rated to handle 80 watts of power. The system includes a set of steel grilles to protect the face of the woofer once installed.
Premium Low-Resonance Tweeter
The Nano 602 set includes a pair of MT120N 1.1-inch soft-dome Acuflex tweeters. Brackets are included to allow us to flush-mount the tweeter in a door or use the angled surface-mount kit to offset the tweeters by about 30 degrees.
MXR300.2 Passive Crossover Networks
The system includes a pair of passive networks that filter the woofer and tweeter at 2.2kHz. The tweeter has an 18 dB/octave electrical slope while the woofer section has a second-order slope. The output of the tweeter can be adjusted to -2, 0 or +2dB settings using a jumper on the crossover.
Small Size, Big Speaker Performance
In spite of the shallow mounting depth of the woofer, the Morel Virtus Nano 602 component set sounds great! It can be used with low- to moderate-power amplifiers to create an amazing front stage. We’ve had great success with this system in classic cars.
If you are in the Campbell area and are looking for a premium speaker system for your vehicle, drop by California Car Sounds and Tint to audition the Morel Virtus Nano 602 set. You can reach us by phone or e-mail if you have any additional questions.
